Maximum benefits

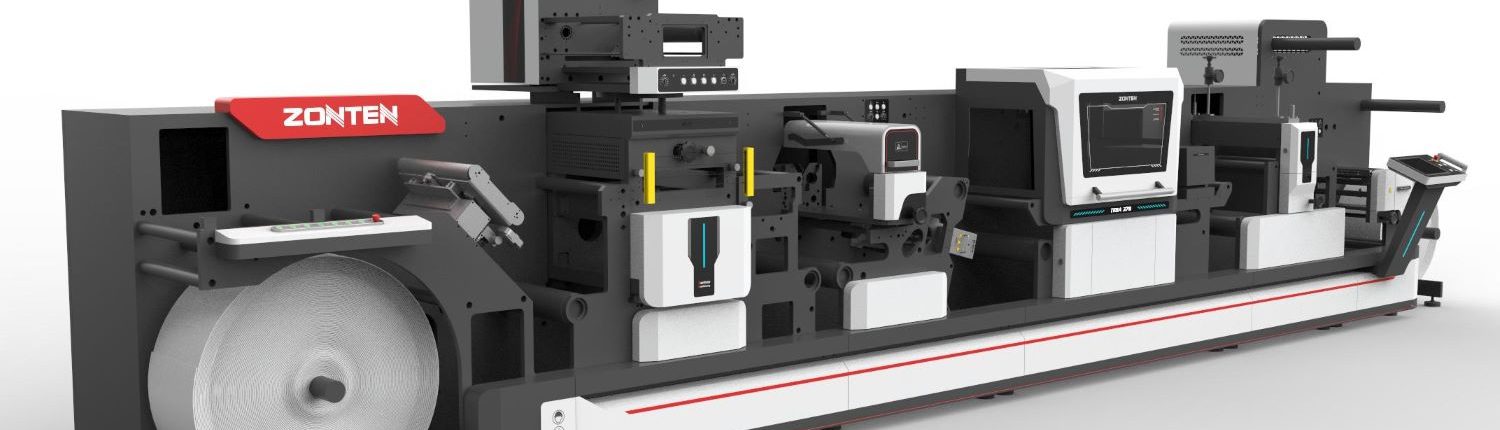

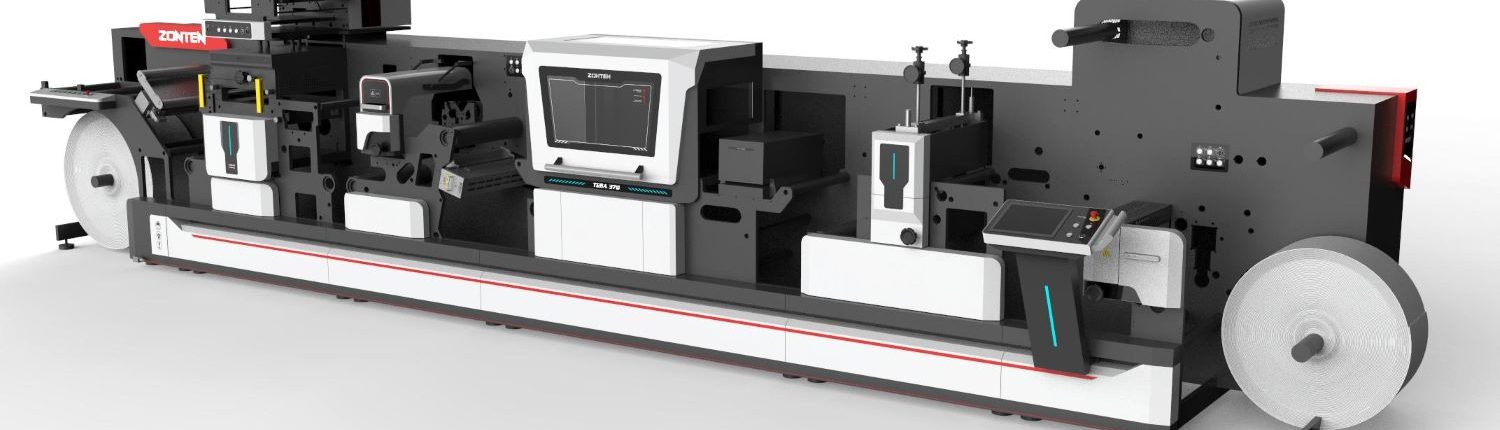

The Multiconver is a high value-added converting unit with excellent value for money
It stands out for its modular and configuration options, making it a versatile unit with multiple finishing options such as:
Hot Foil
Silkscreen
Semi-rotary Flexo
Semi-rotary Die Cut
Corona treatment
Web Cleaner
It is perfect equipment for the wine market as it allows working in shorter runs with striking finishes.
100% configurable machine
Great value for money
Ideal for smaller manufacturers with less intensive workloads
[slick-carousel-slider slidestoshow=”3″ variablewidth=”true” centermode=”false” category=”11″ dots=”false” arrows=”false” autoplay=”true” autoplay_interval=”3000″]
Technical information.
| Maximum paper width | 370 mm |
|---|---|
| Unwind max. diameter | 800 mm |
| Rewind max. diameter | 700 mm |
| Semi-rotary flexo unit | 152Z I 400x350mm I |
| Silkscreen unit | 350×350 mm |
| Flat Bed Hot Foil mechanical speed | 50-400 rpm/min |
| Printig area Flat Bed Hot Foil | 350×350 mm |
| Semi-rotary die cut unit | 50-300 rpm/min |
| Length repeat Semi-rotary Die Cut Unit | 150-350 mm |
| RegistER | Sensor |
| Foil max. diameter | 300 mm |
| Foil feeding direction | 0/90º |
| Foil adjustment | 0,15 mm |
| Heat range | 0-200 |
VISIT OUR ZZE SHOWROOM
Start experiencing
the future of printing
Characteristics.
This servo-driven hot foil stamping machine offers a robust and durable design.
The DRAGON hot foil stamping unit allows a registration of ± 0.15 mm. It incorporates a system with electronic heating control and intermittent stamping, offering continuous tension for greater efficiency and registration precision.
With the queue application on the initial Flexo unit (optional) you can also a cold stamp.
